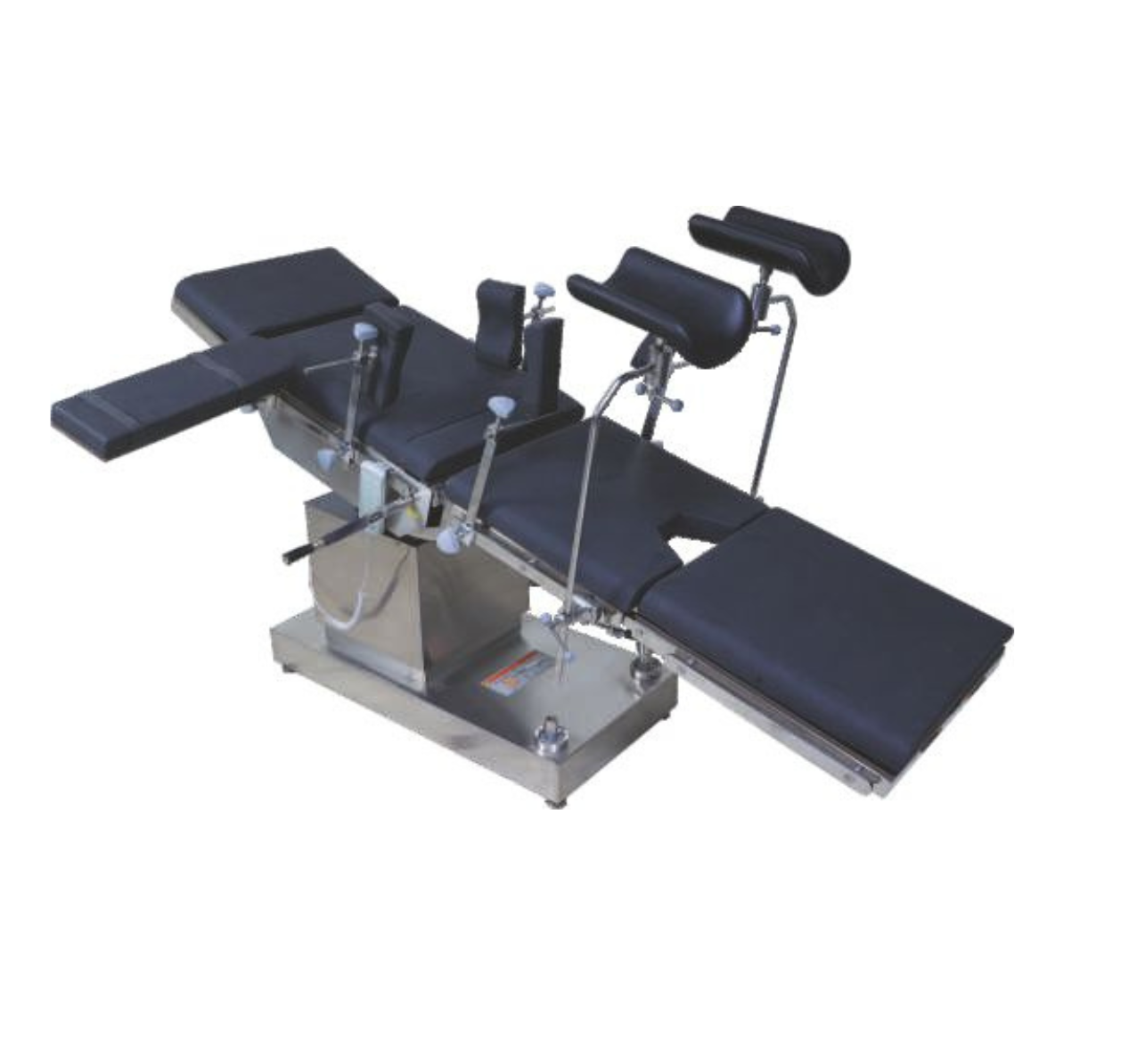

Description

• A Single Action Hydraulic pump Controlled by a Foot pedal. Fully S.S. covered base duty Castors with auto oor
  locking system. The Detachable leg section provides easy lithotomy Positioning.
• Five Section S.S. Top with large perineal cutout for drainage tray. built in kidney bridge. The improved Hydraulic Speed of
  lowering the table is permanently set.
• The table is nished with extra hard. permanent nish. Ovan baked paint and all the accessories are Stainless Steel.

Standard accessories:

• Anaesthetic frame
• Padded side supports
• Intravenous Armboard
• Padded Shoulder Support
• Lithotomy Leg holder with straps
• Footrest with S.S. Top

Optional Accessories:

• Water proof Rubber Mattress
• Raido-graphic Top
• Neurosurgical Attachment
• Geopel type Lithotomy Crutches with straps
• Orthopaedic attachment

Technical data:

• Length of the table top : 180 to 195 cms
• Width of the table top : 50 cms
• Minimum height : 80+5 cms
• Hydraulic Lift : 95+5 cms
• Lateral Tilt : 22 cms
• Lateral Tilt : 20+2 cms
• Longitudinal Tilt : 30+1 cms

Description

• Four Sectional radiolucent top
• Eccentrically positioned top for maximum access for
  movement of C-Arm image intensier
• Base and cover made of heavy & hygienic stainless steel
  sheet
• Mobile on smooth running castors and oor locking
  system for stability
• Leg section and head section are interchangeable

Technical data:

• Overall Length of Table Top : 1950 mm
• Overall width of Table Top : 500 mm
• Up-Down Movement : 770-1220 mm
• Kidney Section up : 150 mm
• Trendelenburg Position : 25
• Trendelenburg & Reverse Position : 25
• Lateral Tilt : 20 (Both side)
• Flex Relex Position : 30 / 220
• Leg Section : 90 down manua

Orthopaedic Attachment’s Features:

• Specially designed for intra operative x-rays image intensier
• Removable pelvis rest and x-ray translucent pelvis stem
• Stirring instruments allow fexion/ raising of legs and stirring ball
  joints locked from foot-end
• Padded orthopaedic knee crutches provide support of
  the patient
• Two Traction devices on sliding spot with ball joint allowing exion
  and rotations of foot, with traction shoes with metallic sole

Description

• Length : 1900 mm
• Width : 600 mm
• Min. Height : 750 mm
• Max. Height : 1000 mm
• Trendelenburg Reverse : 25 / 25
• Flex : 80
• Leg Sec : 90

Features

• Made by Stainless Steel Grade 304 to avoid rust
• Sophisticated mechanics provides smooth step less articulation of the table top for precise patient positioning
• Negligible maintenance required
• Base cover Optional Stainless Steel grade 304/ber
• Battery Back-up available (Optional)
• Electric / Semi-Electric / Hydraulic available also

Description

•  Length : 2000 mm
• Width : 600 mm
• Min. Height : 600 mm
• Max. Height : 850 mm

Features

• Made by Stainless Steel Grade 304 to avoid rust
• Sophisticated mechanics provides smooth step less articulation of the table top for precise patient positioning
• Negligible maintenance required

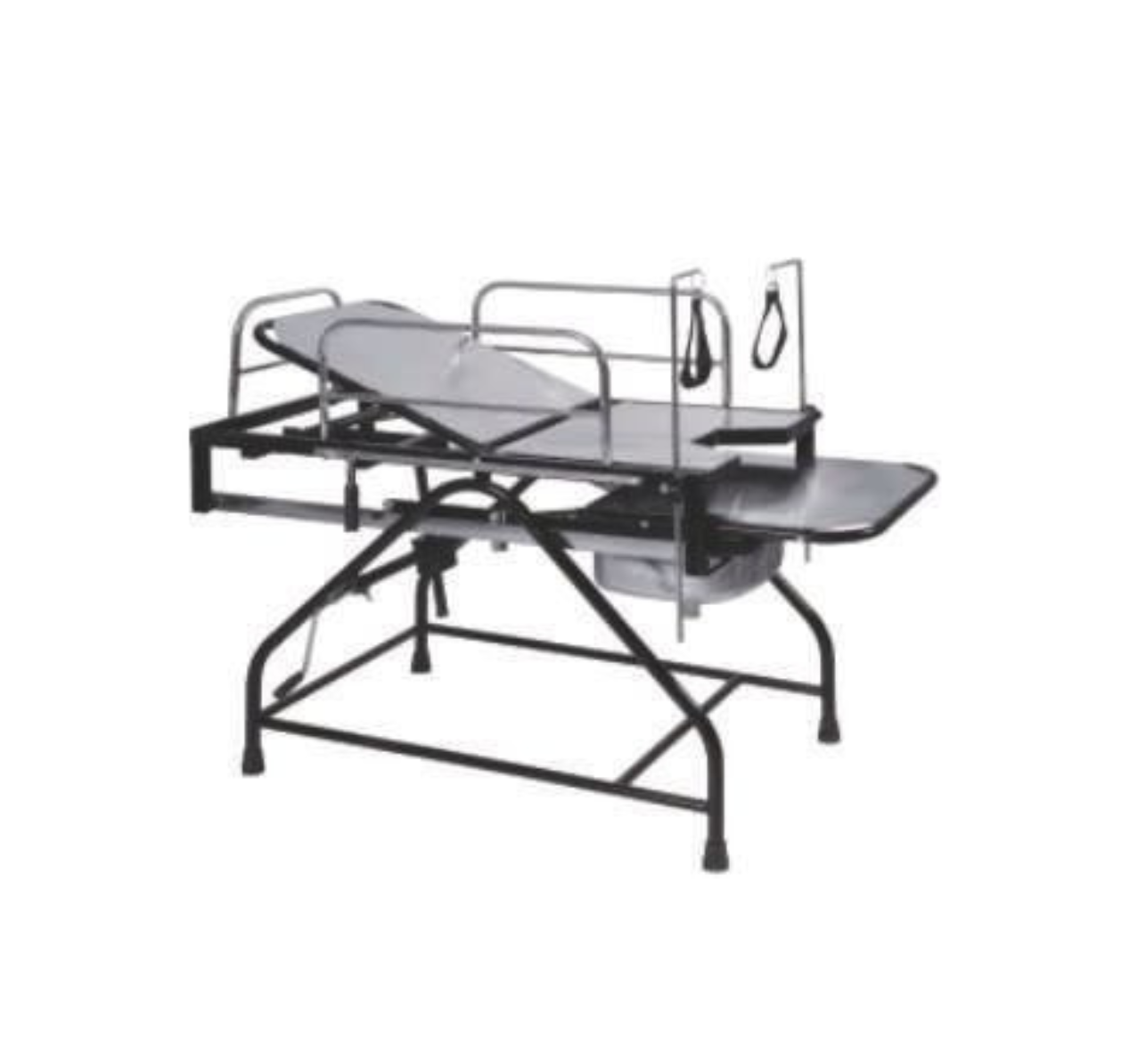

Description

• Approx. Dimensions : 72″L x 27″W x 30″H
• Tubular frame work mounted on PVC stumps
• Stainless steel top in three sections
• Trendelenburg positions adjustable by mechanical gear system with leve handle
• Backrest section adjustable on ratchet
• Leg end section can slide under the main section
• A pair of SS Lithotomy Rods with straps with height adjustable
• With Stainless Steel Sink/ Bowl
• Fine Finished

Description

• Approx. Dimensions : 72″L x 27″W x 30″H
• SS Tubular frame work mounted on PVC stumps.
• Stainless steel top in three sections
• Trendelenburg positions adjustable by MS mechanical gear system.
• Backrest section adjustable on ratchet
• Leg end section can slide under the main section
• A pair of knee crutches with height adjustable
• Finish : Fine Finished.
